ZEE GRAVITY | SKU: ZG-SP52-MOD-WHT

Zee Gravity SPG Module Capsule 52mm

Name: Zee Gravity SPG Module Capsule 52mm
Brand: ZEE GRAVITY
SKU: ZG-SP52-MOD-WHT
Price: 320.0 AED
Availability: InStock

AED 320.00

Tax included Shipping calculated at checkout.

Colors

White Black

Product variants

Delivery and Shipping

Currently, we offer shipping within the United Arab Emirates and other Middle Eastern countries. However, we are actively working to expand our shipping services to cover international destinations.

We generally process orders from Monday to Friday and strive to ship them within 24 hours. Shipments within Dubai typically arrive within 1-2 business days, while deliveries to other Emirates generally take 2-3 days. Deliveries to Middle Eastern countries usually take 4 to 5 working days, excluding customs clearance. Please be aware that delays or variations in delivery times may occur due to shipping courier delays, unforeseeable events, or extreme weather conditions. Read More.

Returns and Refunds

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. Reed More

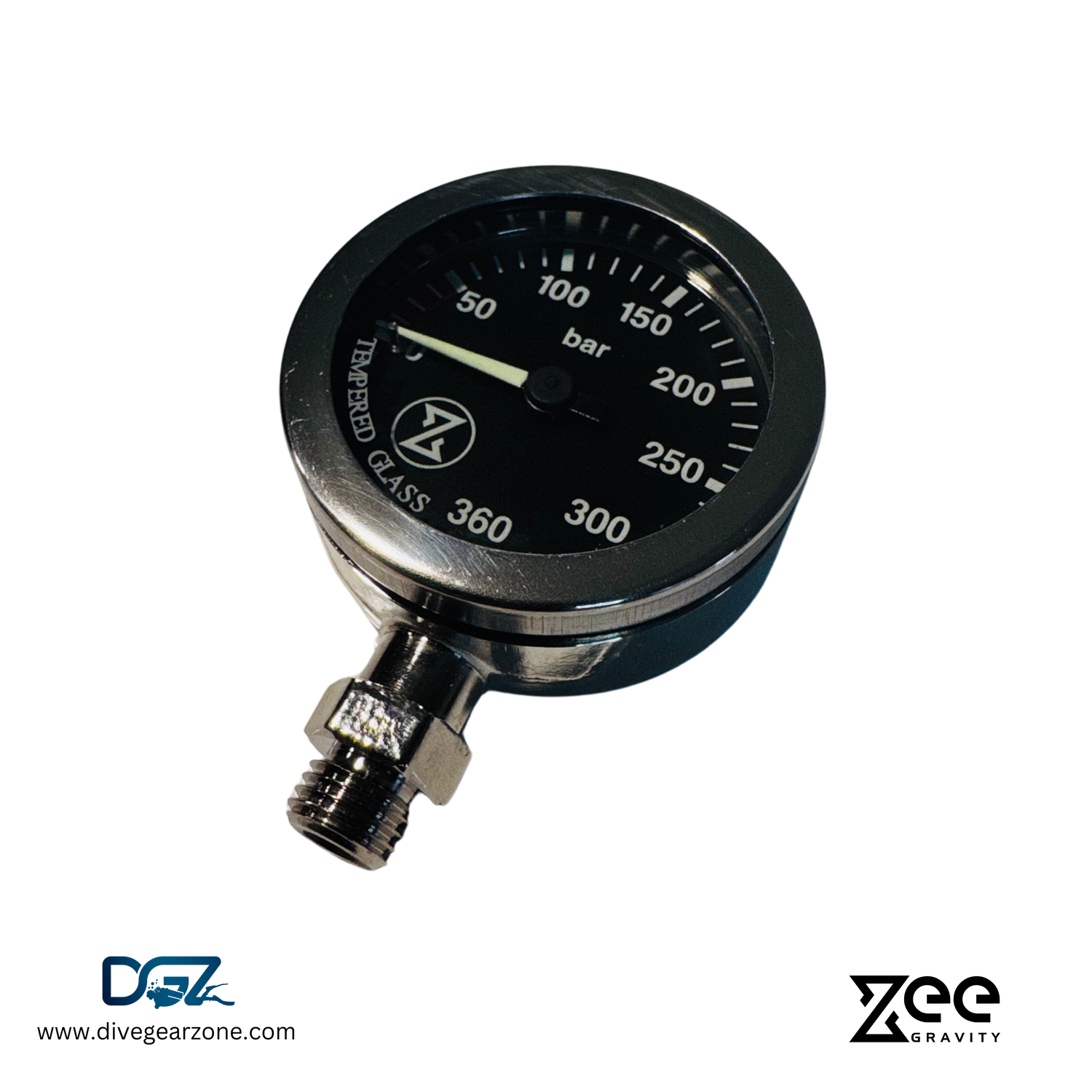

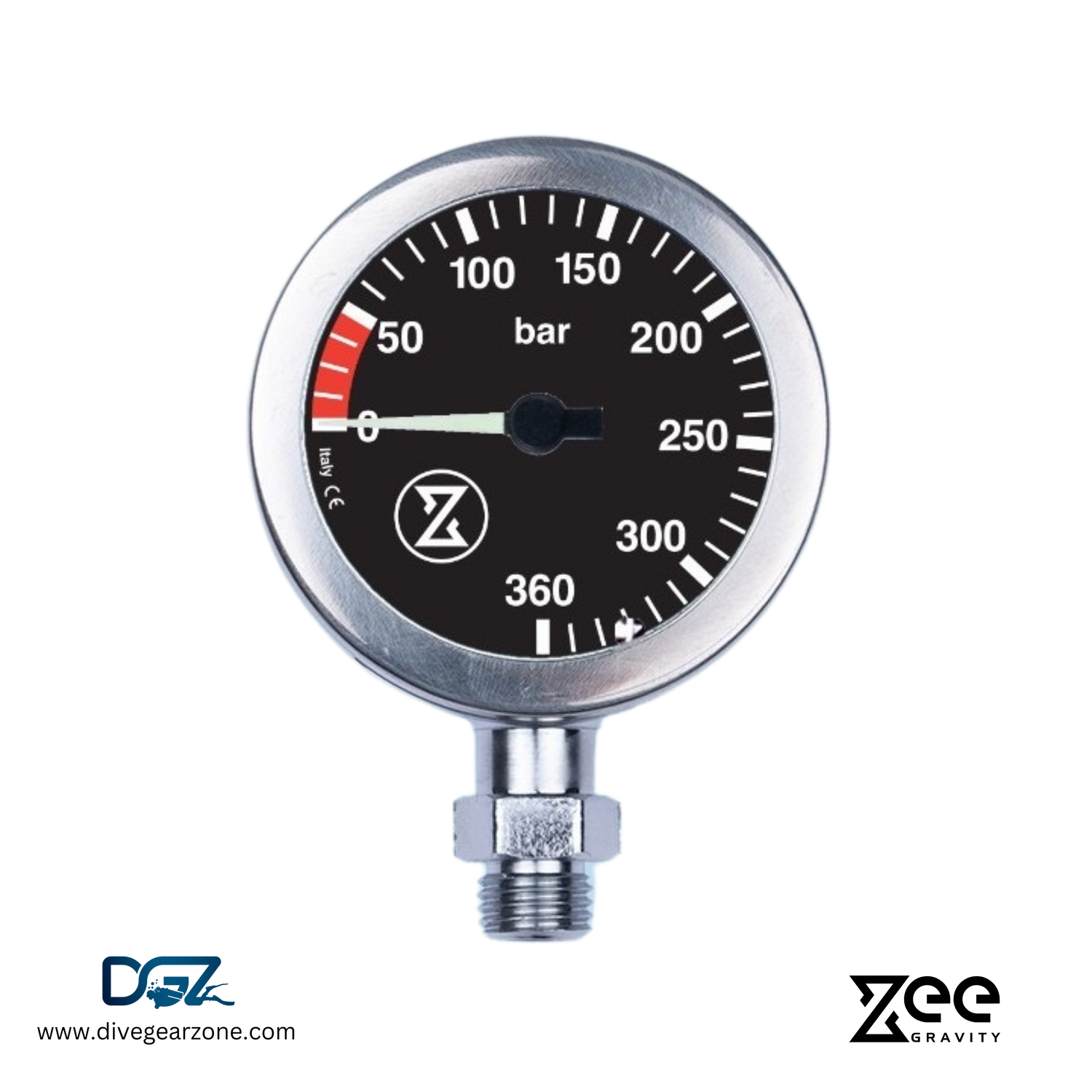

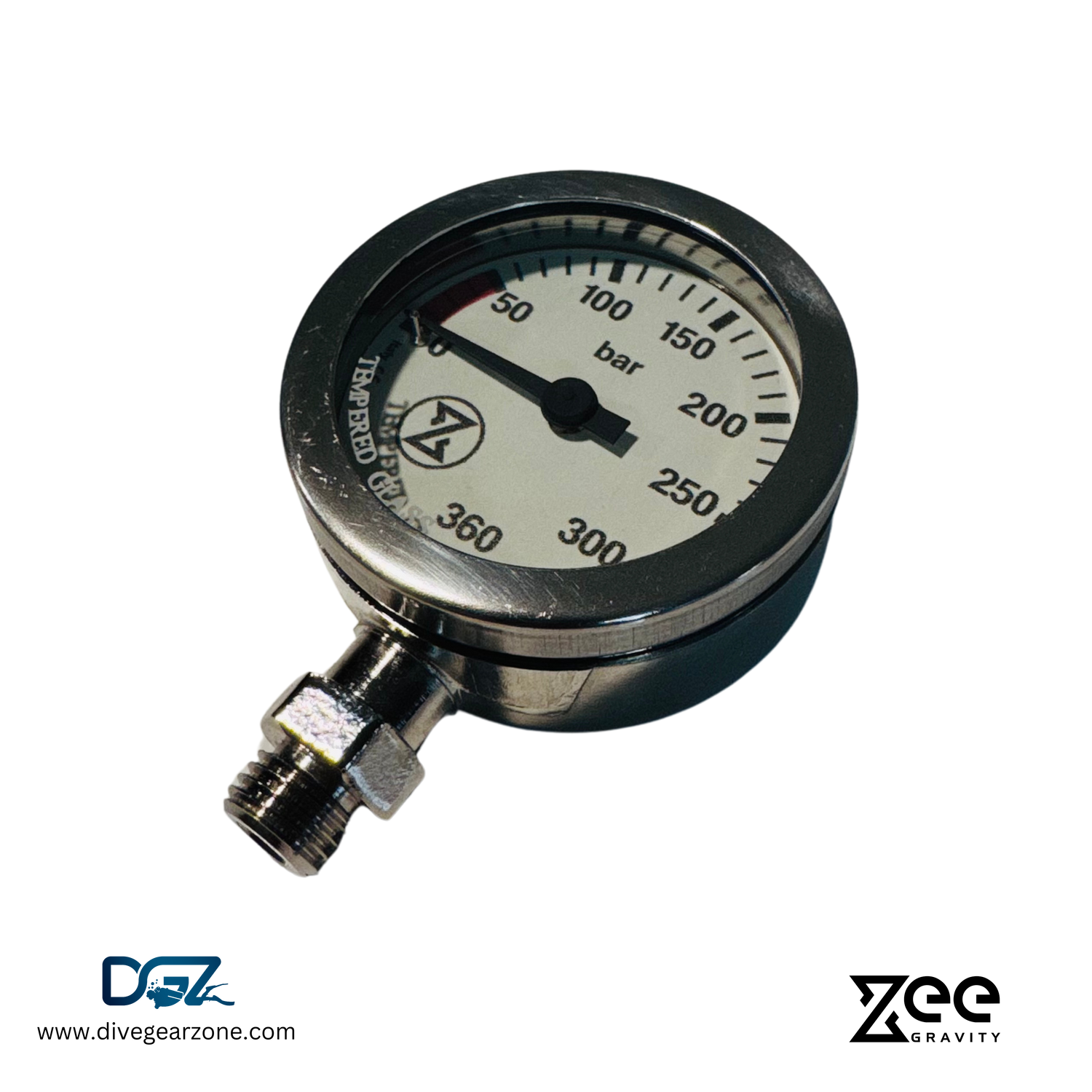

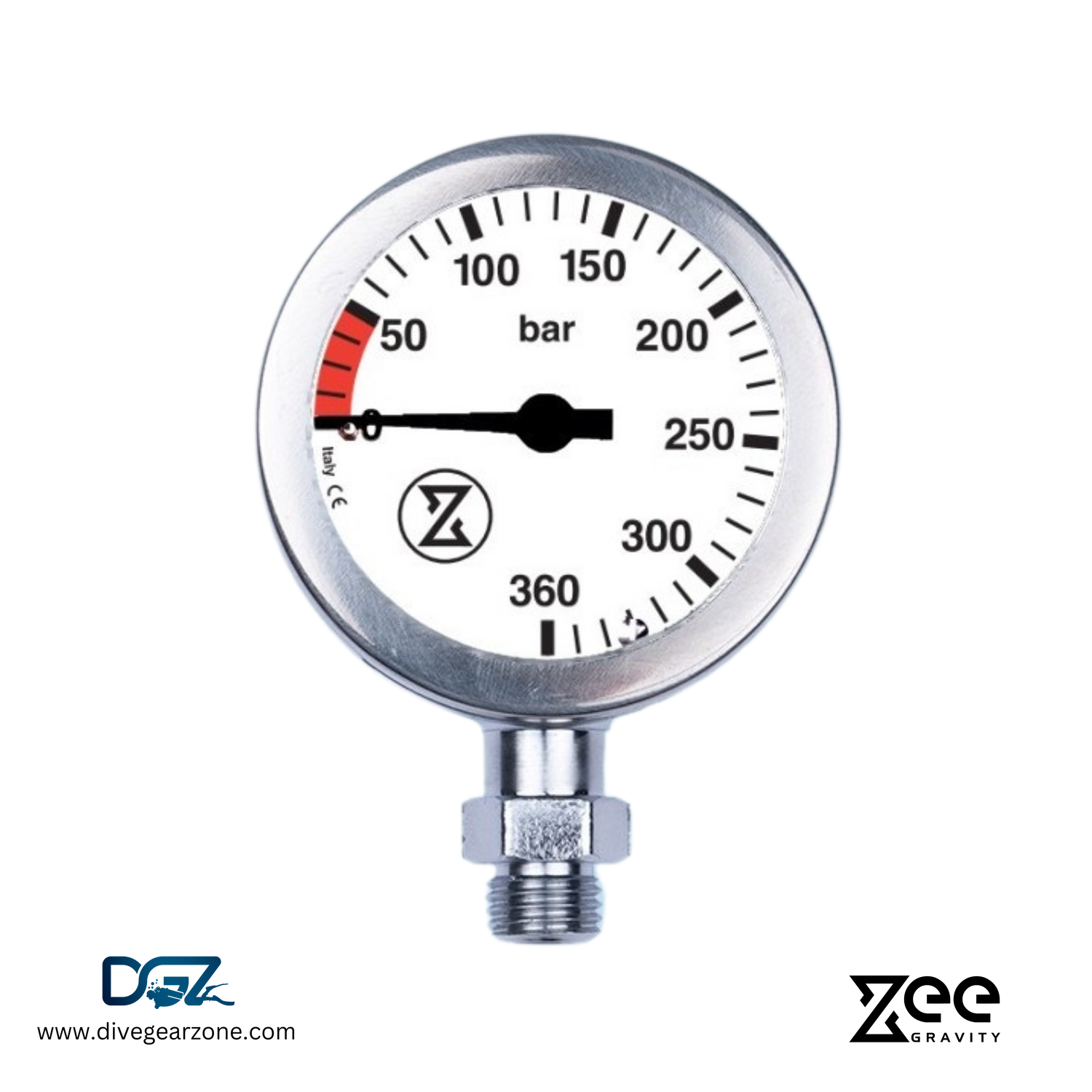

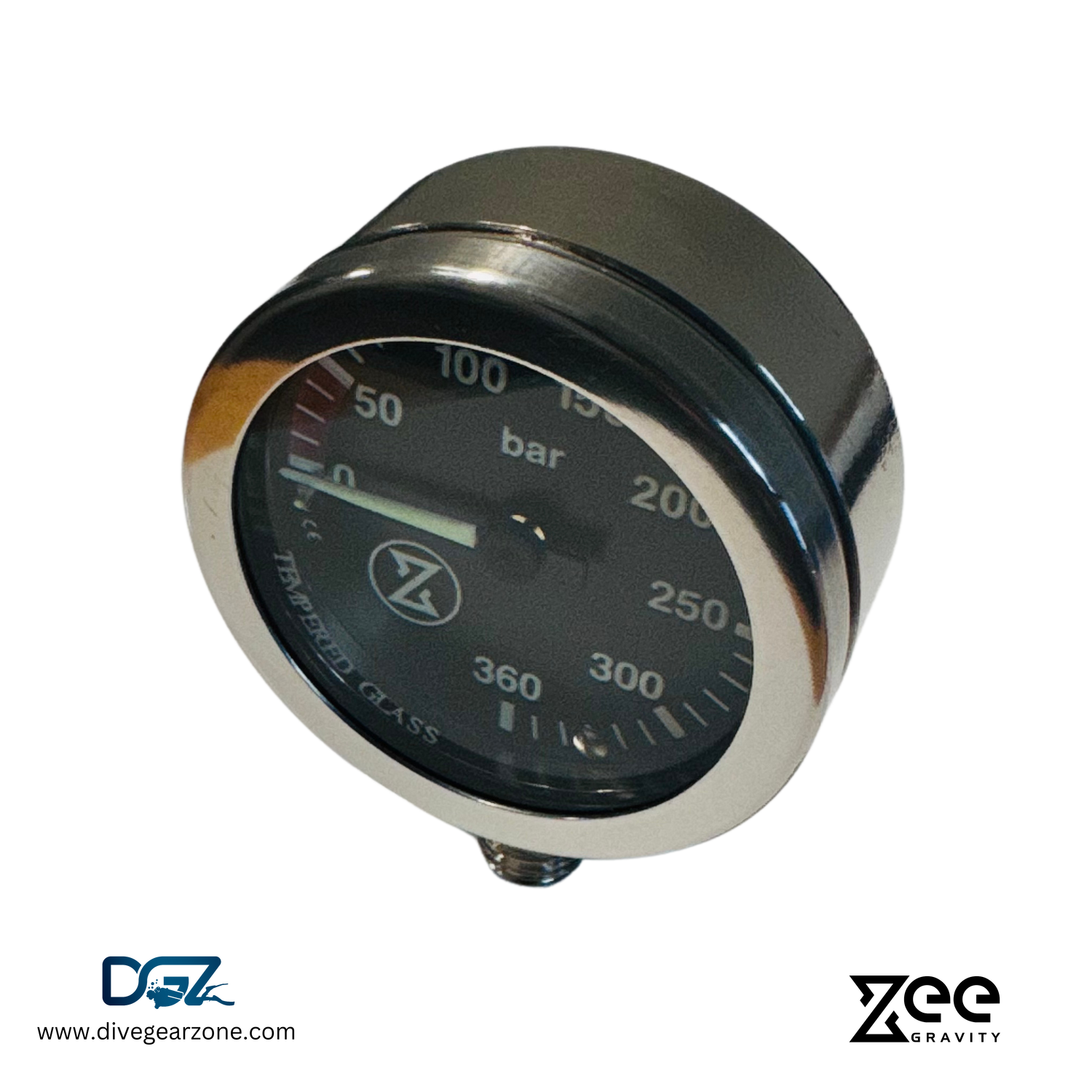

This Zee Gravity 52mm submersible pressure gauge (SPG) features a copper beryllium Bourdon tube mechanism with silver welding for enhanced durability and performance.

This precision mechanism is engineered to accurately measure and display the remaining air pressure in a scuba tank. It is specifically chosen for its reliability, high accuracy, and ability to maintain calibration even after shocks or impacts—making it ideal for demanding diving environments.

Bourdon Tube Mechanism

The Bourdon tube is a curved, flattened metal tube—commonly made from copper beryllium in scuba SPGs—that serves as a highly sensitive pressure sensor.

When pressurized, the tube naturally tends to straighten due to the internal fluid pressure. This movement is mechanically translated into a precise reading on the gauge face.

Its specific curvature and dimensions are engineered to accurately measure pressure changes within a defined range, ensuring reliable performance even in demanding underwater conditions.

Copper Beryllium Alloy

Copper beryllium is a high-strength, durable alloy ideal for handling the pressure fluctuations and physical impacts commonly experienced during diving.

It also offers outstanding corrosion resistance, making it especially well-suited for the harsh underwater environment.

Why Use a Copper Beryllium Bourdon Tube in SPGs?

Accuracy:
The Bourdon tube mechanism delivers a high level of precision in pressure measurement, essential for safe diving.

Reliability:
Known for its consistent performance, the mechanism maintains accurate readings over time, even with regular use.

Durability:
Copper beryllium is a tough, resilient alloy, making the Bourdon tube resistant to impact and pressure fluctuations—ideal for demanding dive environments.

Corrosion Resistance:
The alloy’s exceptional resistance to saltwater corrosion ensures long-term functionality and reduced maintenance.

Calibration Stability:
The combination of Bourdon tube design and copper beryllium's properties allows the gauge to retain calibration, even after exposure to shocks or heavy impacts—a crucial feature for a safety-critical device like an SPG.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Standards and Quality

Zee Gravity pressure gauges are designed for both recreational and technical scuba divers, offering exceptional quality, reliability, and ease of use. Each gauge is constructed with a solid brass housing for durability and long-term performance. Every model is individually manufactured and tested in accordance with EN 250:2014 or EN 250:2014 + EN 13949:2003 (for O₂ versions), and complies with the European Directive 2016/425.

Zee Gravity SPGs – Built & Tested for Reliability

All Zee Gravity SPGs are made in Italy under strict high-quality manufacturing and testing standards to ensure performance you can trust in any diving environment.

Each gauge undergoes individual high-performance testing procedures to ensure proper functionality and accuracy, so you can dive with total confidence.

Designed to be lightweight, ergonomic, and easy to use, these SPGs provide clear, accurate readings so divers can monitor their air supply and safely end dives before reaching critical levels.

Zee Gravity SPGs are available in both capsule module and combo configurations with integrated depth gauges and compasses.

Each SPG body is built from either nickel-plated brass or double mirror chrome-plated brass for maximum durability. Internally, they feature copper beryllium components with silver welding, engineered for precision and long-term stability.

Depending on the model, Zee Gravity SPGs use either a Bourdon tube or spiral-wound mechanism, both known for their: Accuracy, Reliability, Durability,
Corrosion resistance and Calibration stability — even after strong impacts or shocks

The luminescent dial ensures easy reading in low-light conditions, while the depth gauge includes a copper-beryllium diaphragm for fast and accurate readings, even at shallow depths. It also features an altitude adjustment screw for diving in high-altitude environments.

ZEE GRAVITY SPGs COMPARISON

A table comparing the facets of 5 products
Facet	Zee Gravity SPG Module Capsule 50mm View details	Zee Gravity SPG Module Capsule 52mm View details	Zee Gravity SPG Compact In-Line View details	Zee Gravity SPG Combo In-Line 52mm View details	Zee Gravity SPG 2Console In-Line 50mm View details
By
By	ZEE GRAVITY	ZEE GRAVITY	ZEE GRAVITY	ZEE GRAVITY	ZEE GRAVITY
Price
Price	AED 280.00	AED 320.00	AED 380.00	AED 750.00	From AED 700.00
Housing
Housing	nickel-plated brass body	Nickel plated brass housing	nickel-plated brass body	Nickel plated brass housing	nickel-plated brass body
Mechanism
Mechanism	Copper beryllium spiral wound	Copper beryllium bourdon tube and silver welding	Copper beryllium spiral wound	Copper beryllium bourdon tube and silver welding	Copper beryllium spiral wound
Type
Type	Module Capsule	Module Capsule	1 Console Compact	2 Console In Line	2 Console In Line
Dial
Dial	Luminescent and easy-to-read dial	Luminescent and easy-to-read dial	Luminescent and easy-to-read dial	Luminescent and easy-to-read dial	Luminescent and easy-to-read dial
Size
Size	Diam. 50 mm / 2”	Diam. 52 mm / 2”	Diam. 50 mm / 2”	SPG: diam. 52 mm / 2” MDI: diam. 63 mm / 2.5”	SPG: diam. 50 mm / 2” MDI: diam. 50 mm / 2”
Hose
Hose	No	No	Hi Pressure Rubber 80 cm	Hi Pressure Rubber 80 cm	Hi Pressure Rubber 80 cm
Lens
Lens	Polycarbonate transparent window	Tempered Glass	Polycarbonate transparent window	Tempered Glass	Polycarbonate transparent window
Scale
Scale	Bar	Bar	Bar	Bar / Meter	Bar / Meter
Max Pressure/Depth
Max Pressure/Depth	400 bar	360 bar	400 bar	360 bar - 70 m	400 bar / 70 meter
Standard
Standard	EN250:2014 & European Regulation 2016/425	EN250:2014 & European Regulation 2016/425	EN250:2014 & European Regulation 2016/425	EN250:2014 & European Regulation 2016/425	EN250:2014 & European Regulation 2016/425
Special Features
Special Features	-	-	-	Depth Gauge: Maximum depth red indicator easy to reset Adjustable screw for diving in altitude	Depth Gauge: Maximum depth red indicator easy to reset
